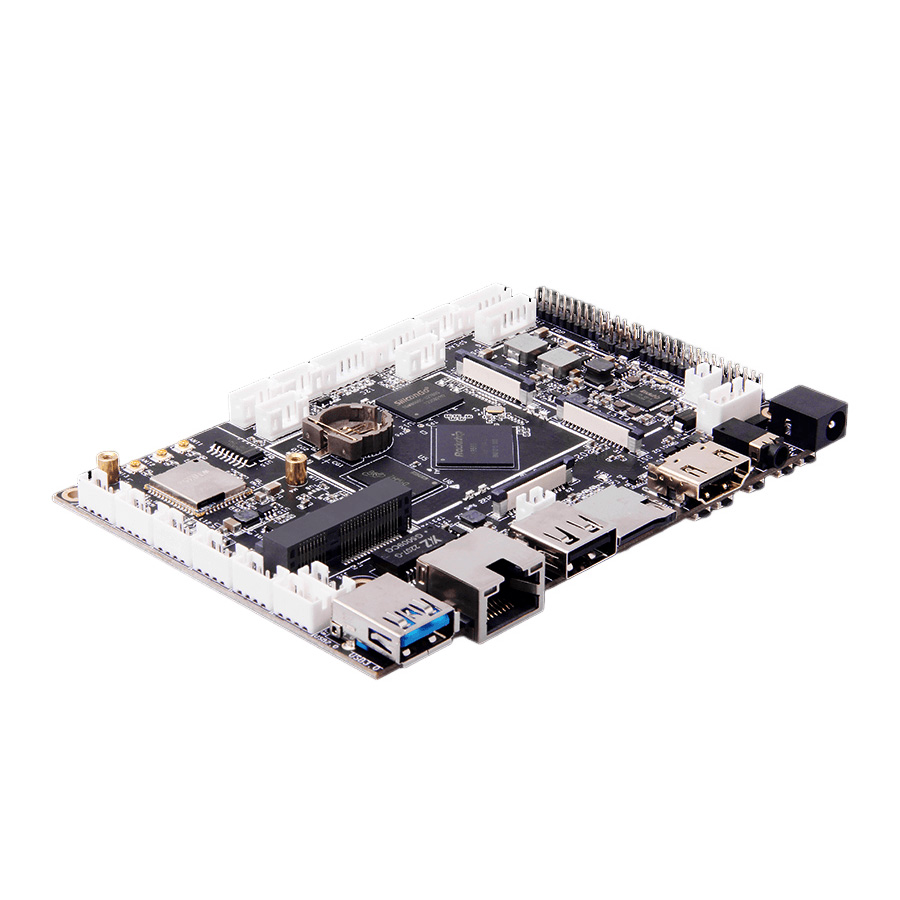

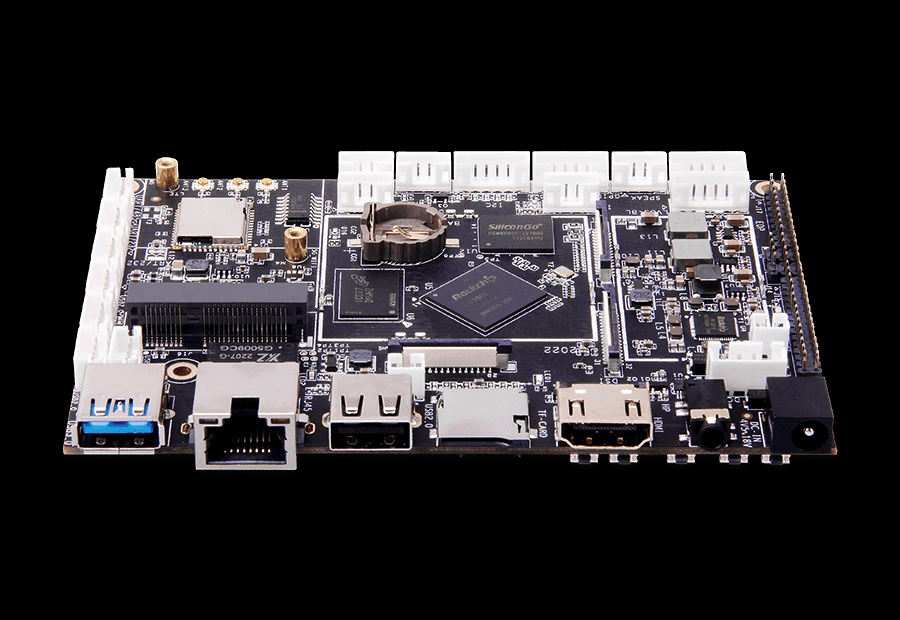

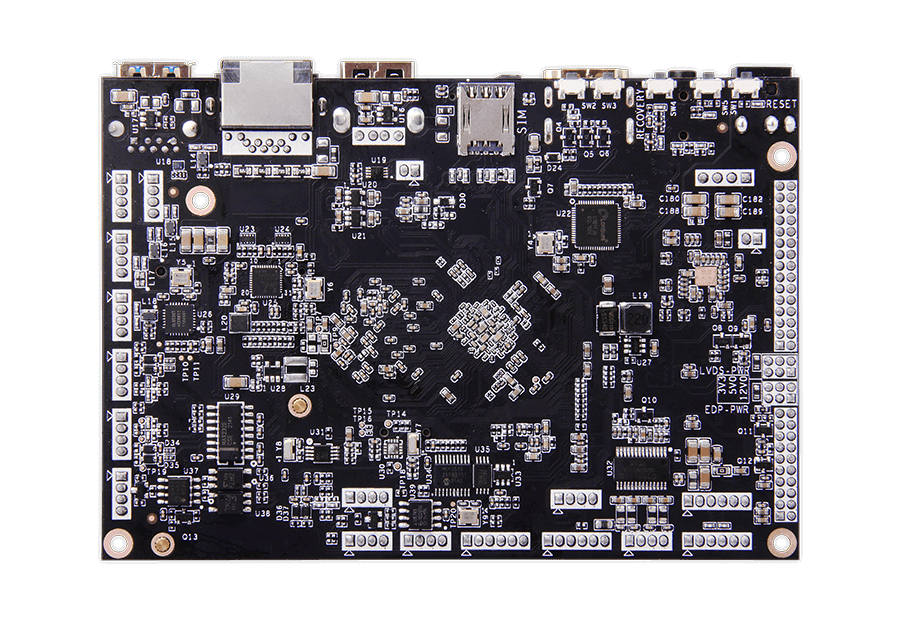

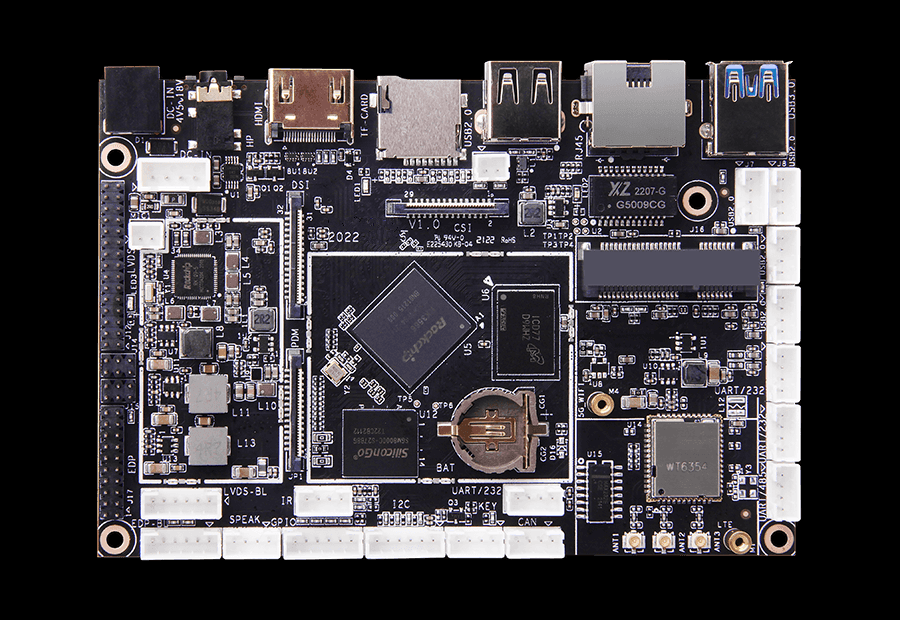

Rockchip SDC-RK3566 Android Or Linux Ubuntu Development board Customized Solution

All features are customizable

High-performance Quad-core ARM SoC Cortex-A55 Microarchitecture up to 1. 8GHz with 4GB RAM- The SDC-RK3566 features the Rockchip RK3566 SoC and Mali-G52 GPU along with 4GB of Dual Channel DDR3 memory and 16GB of fast & durable eMMC onboard storage (eMMC flash memory can up to 128GB)
This module also includes an integrated ARM Mali G52 graphics processor, which supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, and embedded high-performance 2D acceleration hardware.
DIY Design – SDC-RK3688 features multiple DIY use features including an enhanced GPIO header with dual mode I2S, silkscreened PCB, onboard power on pin
Highly compatible PCB & Topology –Leveraging industry standard PCB & topology dimensions along with IO and connection placement, SDC-RK3566 offers extensive compatibility with SBC accessories & chassis.
HD & UHD video support –SDC-RK3566 supports accelerated HD & UHD video playback and supports HDMI CEC for seamless power on & off configurations. 8K video decoder.
With 22nm lithography process, it features low power consumption,low heat and high performance.

We provide all kinds of RK-3566 based hardware customized solution.

PRODUCT DETAIL

1.1. Introduction

AIWEDO SDC3566 Android integrated board, is based on Rockchip micro RK3566 Cortex-A55 quad-core chip solution, frequency up to 1.8GHz,it has excellent image processing and computing performance,able to meet a variety of requirements,such as human-machine interaction, game play, video play, industrial control etc; the board has multiple interfaces and I / O, which is capable of be connected to various external devices.

1.2. Characteristics

High performance: The 1.8GHz main frequency can process a variety of tasks quickly, and the

ali-G52 GPU enhances support for different APIs, including OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1,

Multiple interface: It has USB port/ serial port/ I2C/SPI/ ADC/GPIO, suitable for common devices on the market.such as card swiping equipment, printing equipment and so on.

Excellent performance: Support horizontal and vertical screen play, dual-screen same display,

ual-screen different display, remote control,VGA/HMDI etc.

System customization: support Android system optimization customization, provide system interface API code.

2.CPU block diagram

3.List of Basic Functions‌

Core devices
CPU	Quad-core 64-bit Cortex-A55,with the highest primary frequency of 1.8GHz
GPU	ARM G52 2EE,support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1，embedded high-performance 2D acceleration hardware
RAM	LPDR4X 1GB/2GB(default)/4GB
Flash memory	eMMC 8G(default)/16/32G/64G(optional)
Memory expansion	Up to 128GB of TF card expansion support
Display Interface
HDMI OUT	1* HDMI2.0 interface,with a maximum support resolution of 4096×2160@60Hz
LVDS OUT	1* LVDS interface (single, 6-bit dual, 8-bit dual), maximum support resolution 1920×1080
EDP OUT	1* EDP interface,with a maximum support resolution of 2560×1600@60Hz
Audio Interface
Headset	1microphone single channel input(analogue signal) 1audio dual channel output (analogue signal)
Amplifier	Left and right dual-channel output, support 8 Ω 10W dual speakers
MIC interface	1*channel microphone input interface
Network Support
Ethernet	1*standard RJ 45 interfaces,10 / 100M adaptive Ethernet
Wifi/Bluetooth	On-board WIFI / BT module, support WiFi 2.4GHz / 5GHz dual-frequency (optional), support 802.11a/b/g/n/ac protocol, support Bluetooth 4.0 (support BLE)
Mobile network	1*built-in MINI PCI_E slot to connect 3G / 4G module
Basic Interface
USB 2.0	3USB Host interfaces (1external standard USB socket, 2*2.0mm-4P sockets) for external high-definition USB cameras, USB drives, keyboards, mice, and other devices
USB OTG	1*USB OTG interface for system debugging, firmware updates, and can also be set to Host mode
Serial port	4channels of serial ports, including 3channels of TTL (2channels can be optionally configured as RS232 serial port, 1channel can be optionally configured as RS485 serial port), and 1*channel of TTL debugging serial port
GPIO Interface	Provides 5 IO ports for free definition of input and output status
RTC	Support for real-time clock, 1220 button battery power supply
IIC Interface	1*standard I2C interface for touch and communication
Timed switch machine	Optional
Infrared receiving	Optional
