Allwinner 1GB A10 Cortex-A8 A10 1GB Development Board Cortex-A8 Kit Hardware Solution

1.Introduction

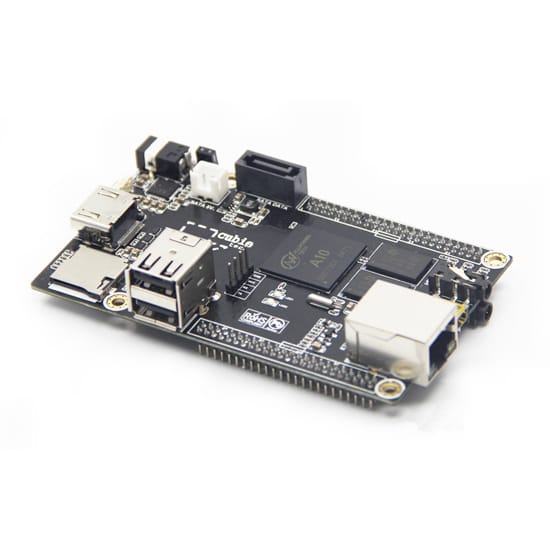

The Cubieboard1 is a mini pc developer platform based on Allwinner A10, Compared with Raspberry Pi, it has a very wide range of IO options. The board is set apart by offering SATA and an extended pin interface for low level access to the SOC. The new one comes with a case. Features: Allwinner A10 SOC 96 pin extended interface Built-in IR receiver SATA supported Supports 2.4GHz wireless keyboard and mouse

Specification:
CPU: 1G ARM cortex-A8 processor, NEON, VFPv3, 256KB L2 cache GPU: Mali400, OpenGL ES GPU Memory: 1GB DDR3 @480MHz Video output: HDMI 1080p Output Network: 10/100M Ethernet Internal storage?4GB NAND Flash IO ports: 2 USB Host, 1 micro SD slot, 1 SATA, 1 ir Extended interfaces: 96 extend pin including I2C, SPI, RGB/LVDS, CSI/TS, FM-IN, ADC, CVBS, VGA, SPDIF-OUT, R-TP Supports systems: Running Android, Ubuntu and other Linux distributions Power supply?5VDC/2A power supply with 4.00mm(ext.diameter) x 1.7mm(int.diameter) barrel plug Size 10cm*6cm

Package List:

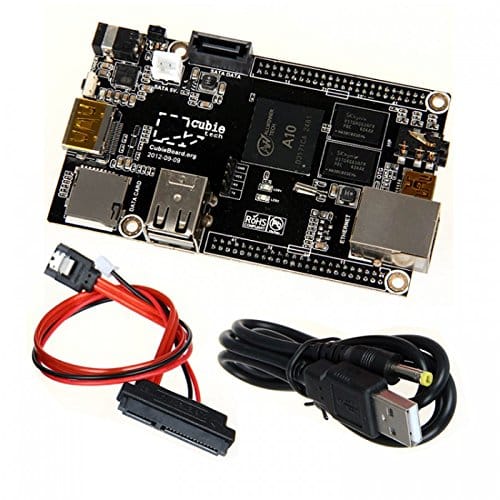

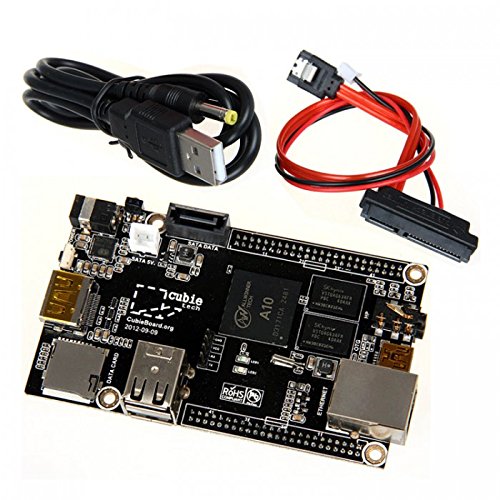

Package list: 1 x Cubieboard1 board 1 x USB power cable 1 x SATA cable

 2.CPU block diagram

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of sample’s payment?
A: Full payment. Goods would be shipped in 3-5 work days after payment received, finally depends on quantities.

Q3. What is your terms of delivery?
A: EXW.

Q4. How about your sample’s delivery time?
A: Generally, goods would be shipped in 3-5 work days after payment received, finally depends on order quantities.

Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
