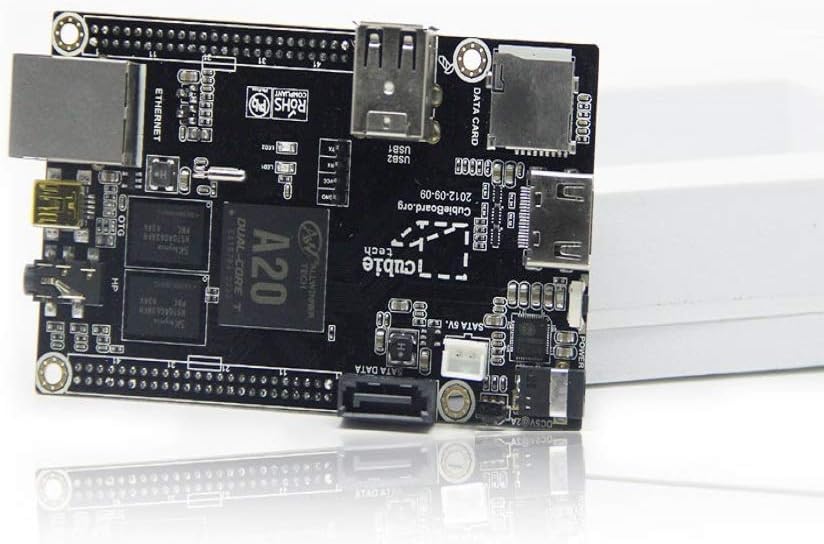

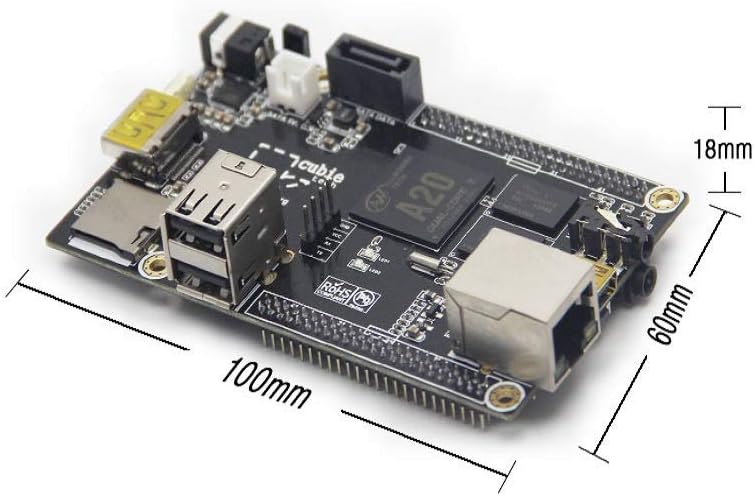

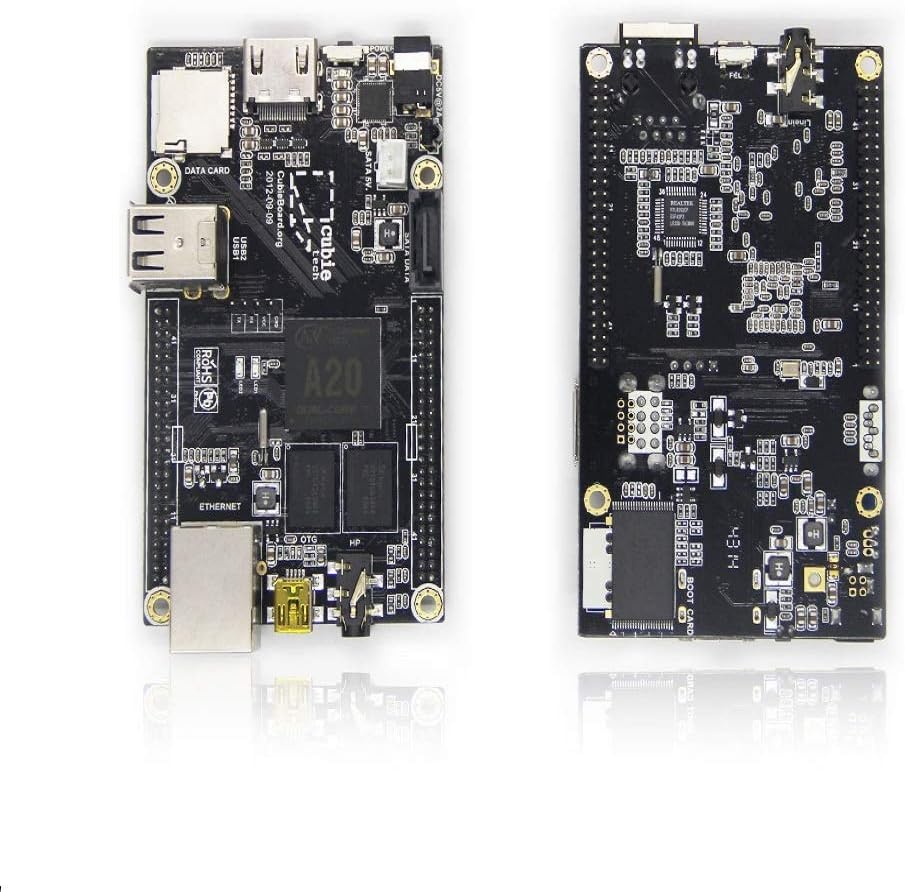

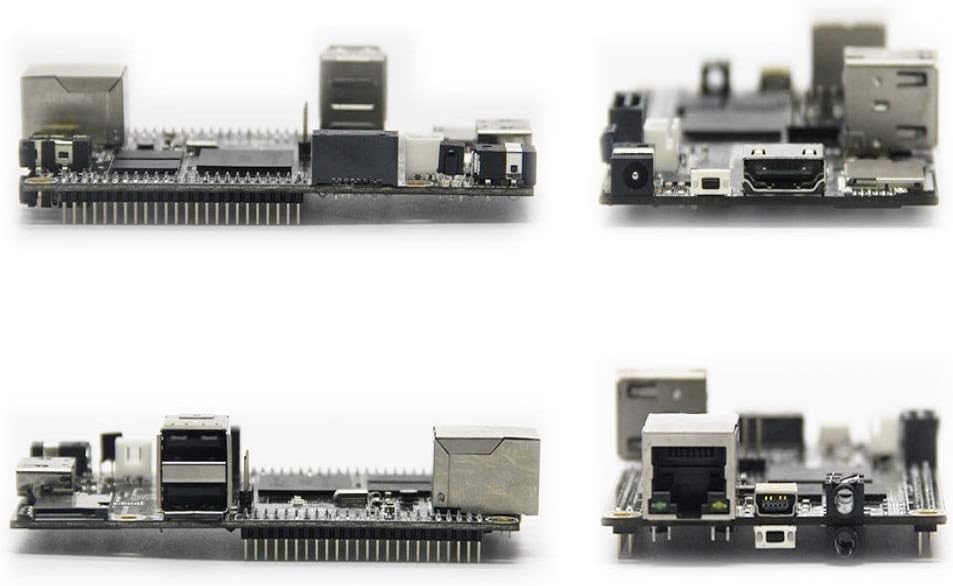

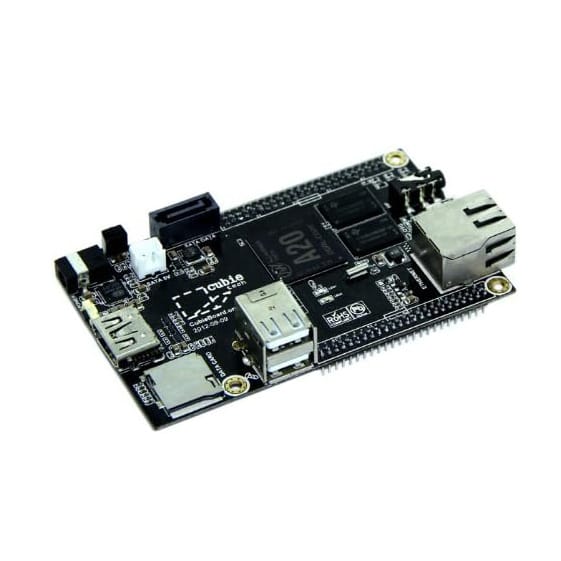

Allwinner A20 Development Board Cubieboard2 Dual core with 4GB Nand Flash

All features are customizable

[Large choice space] A20 core board, users can chooseto match wireless WIFI, camera. According to the nature of their own productsand needs to choose functional modules, effective cost control.
[There are abundant interfaces] such as USB, HDMI, SD card, SATA,infrared and so on.
[ Wide range of use] Connecting the monitor and mouse becomes a computer,and office entertainment is carried out simultaneously. Learning as developmentboard, monitoring equipment, etc.
[Good stability] The design of this product aims at stability. Suddenpower failure and plug-in power supply will not affect the performance of theboard.
[Professional technical support] Open source schematic with Open sourceschematic，CB Chinese and English forums can solveall kinds of development and learning problems for you.

We provide all kinds of Allwinner SoC based hardware customized solution.

PRODUCT DETAIL

1.Introduction

[Overview]

Cubieboard is open source hardware that targets developers,geeks, makers. And it is enhanced computing power with dual-core mainchip.It’s not only for development, but also can be used invarious areas as core-board or controller board. If you want to take part in the development, some small tools and accessories would be needed. We usually use USB-UART cable to monitor the system running state and input some instructions. We would use USB cable to reflash the image. If you want to make system boot media, a micro SD card and USB card reader are needed as well. If you want to simulate the CPU, the JTAG subboard or TFcard board would be useful to connect the JTAG pins with the simulator.

[Specifications]

SOC: AllWinner SOC A20, ARM Cortex-A7 Dual-Core，1GHz, ARM Mali 400 MP2 complies withOpenGL ES 2.0/1.1

Memory: 1GB DDR3@480MHz (960MTPS)

Storage: eMMC, 4GB default, 8GB is an option

TF Card: Micro SD card slot, up to 32GB

SATA: Support 2.5 inch HDD/SSD up to 2TB

Display: HDMI Port A, HDMI V1.4a, support 1080P@60Hz resolution output

Ethernet: 10M/100M RJ45

IR: Infrared remote receiver Philips standard

Audio: Support 3.5 headphone jack for Audio output, Support 3.5 jack forLine-In

Power: DCIN 5V/2.5A power, Support USB power input

Keys: Power key, Uboot key for reflashing the ROM

LEDs: Power Led x 1, User Led x 2

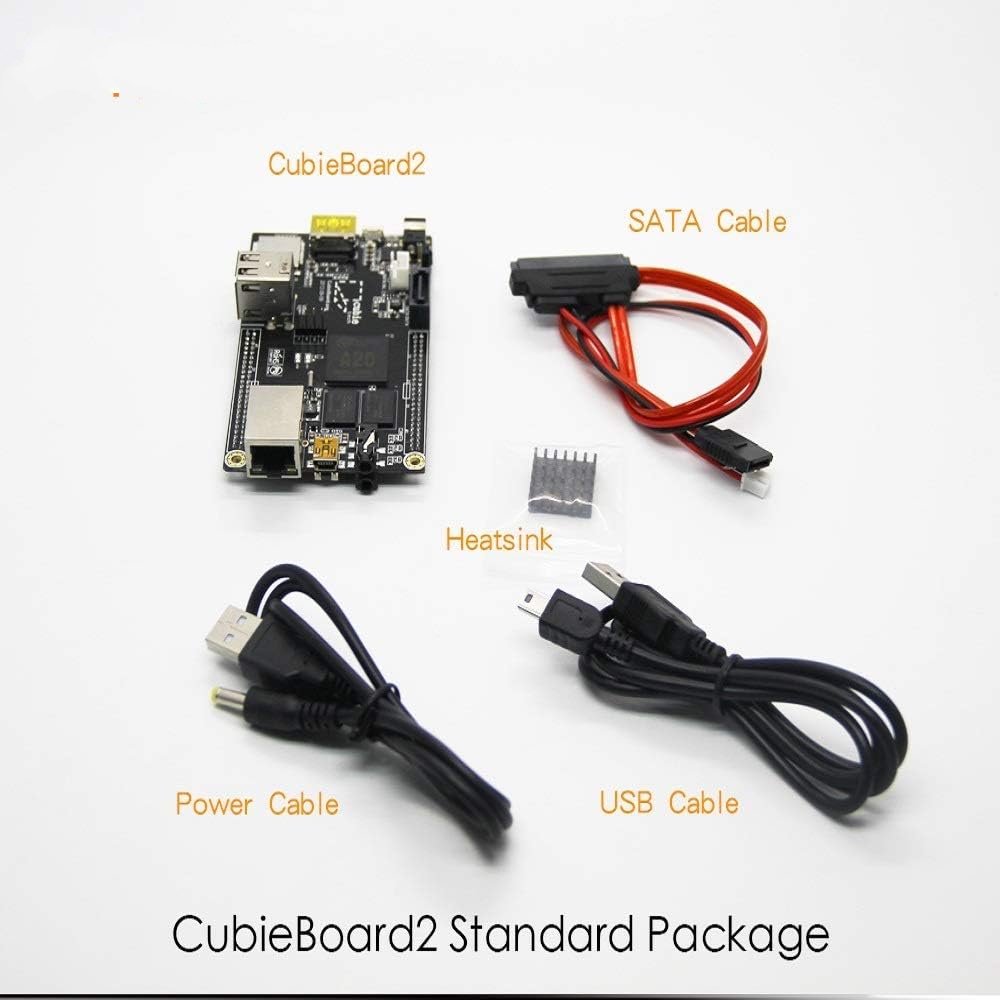

[Shipping list]

1 x Cubieboard A20 board

1x Power cable

1x SATA Cable

2.CPU block diagram
